PROBLEM
Affordable double bed to be made with distributed design & manufacture principles.
SOLUTION

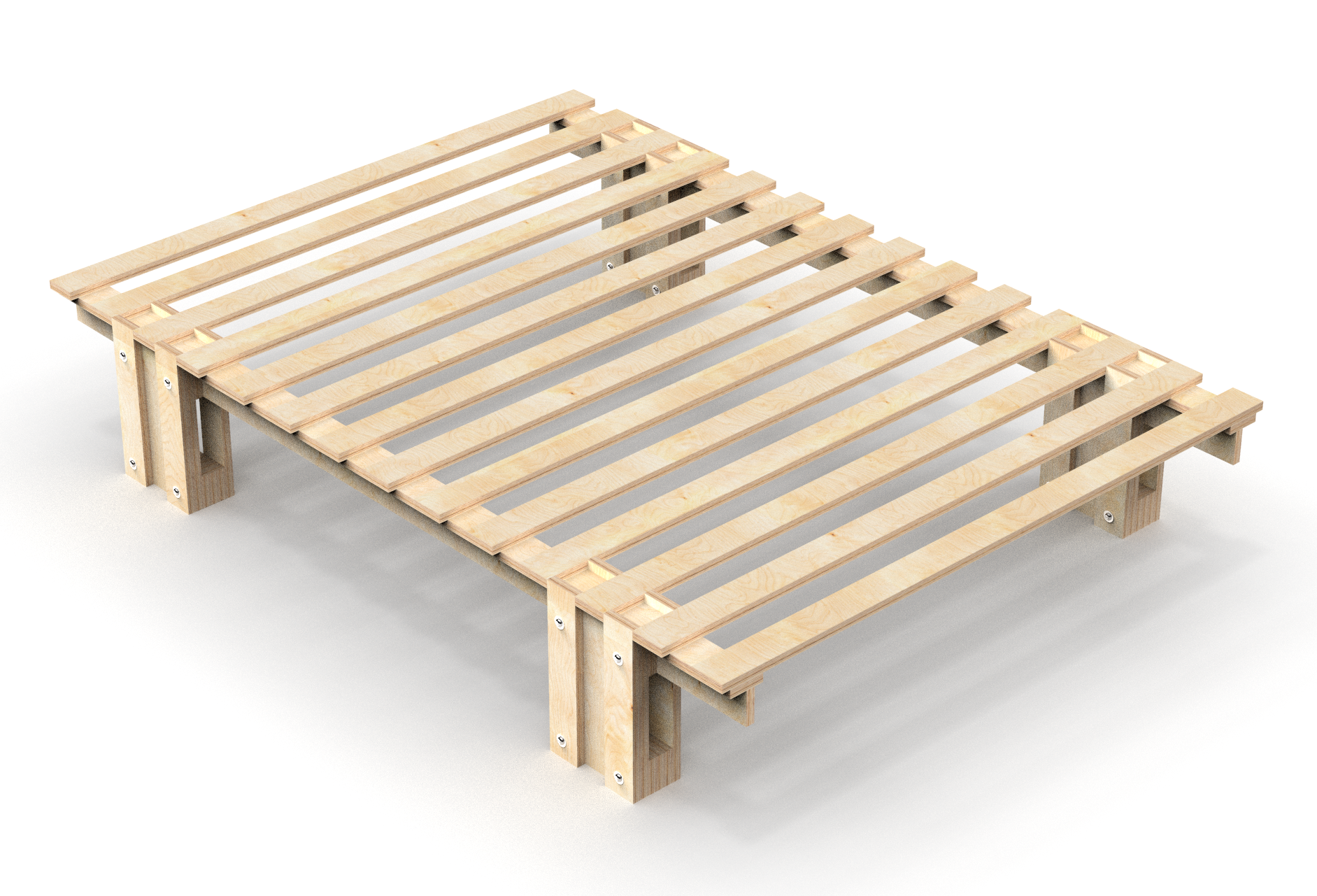

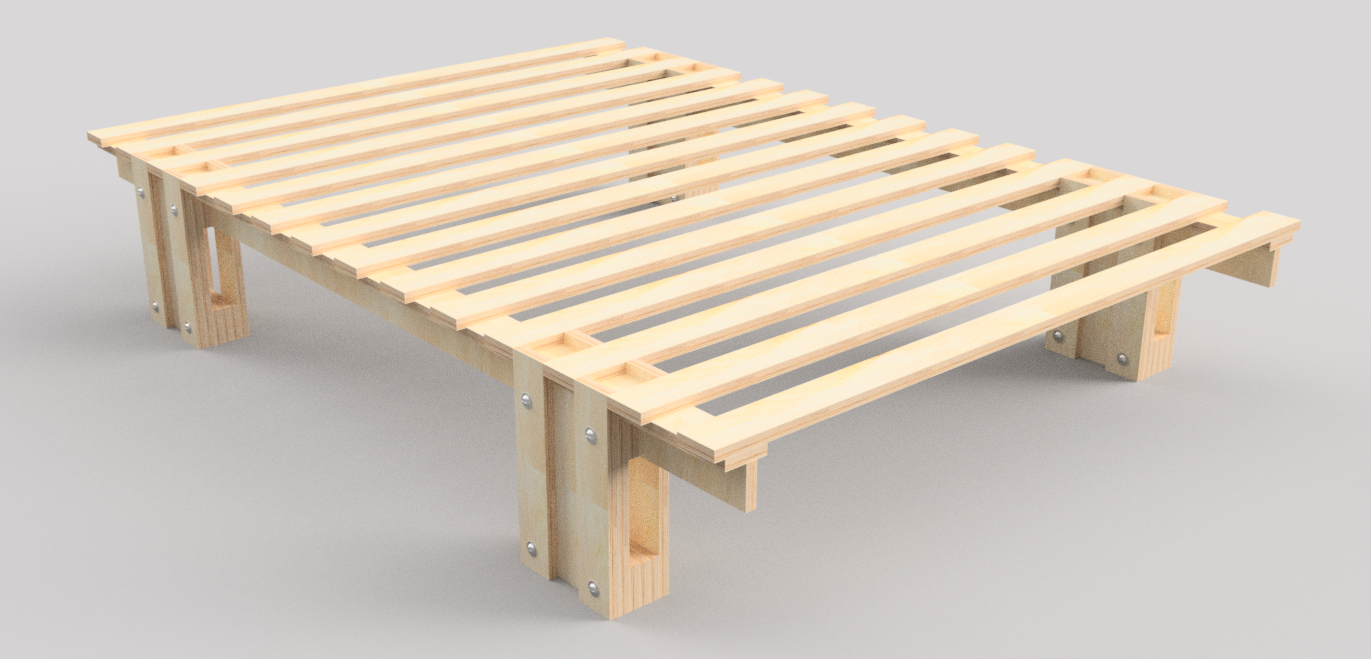

Open design for a double bed that can be made anywhere with common & affordable tools. Produced with easy to source materials. Easily adaptable for different mattress sizes.
MATERIALS
- 1 Sheet off 18mm Birch Ply (any sheet wood)
- 120mm M10 Bolts & Nuts
- 35mm Posi Gold Screws
TOOLS
- Battery Drill/Driver
- 11mm Drill Bit & Posi Screw Head
- Hammer
- Large Flathead Screwdriver
- Spanner

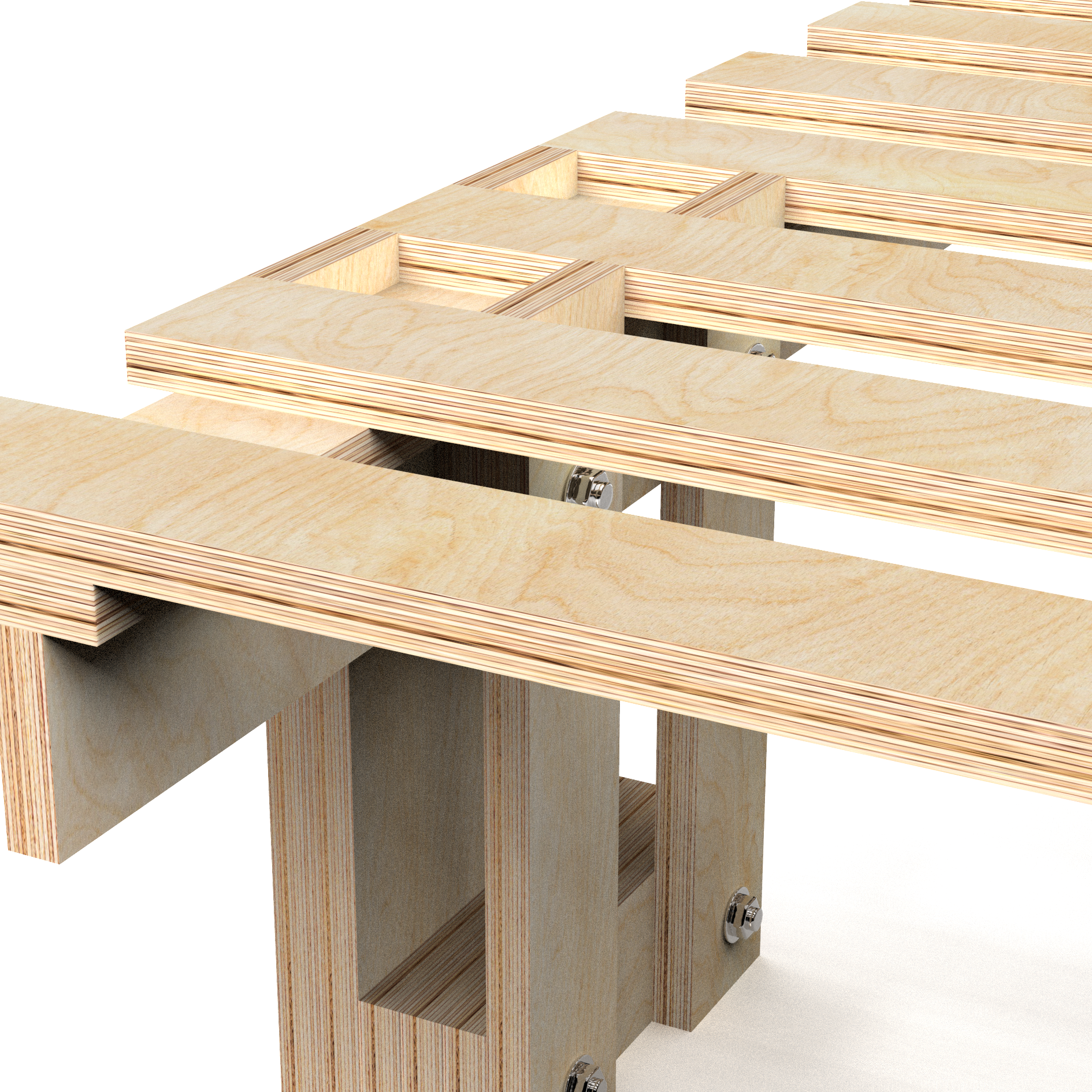

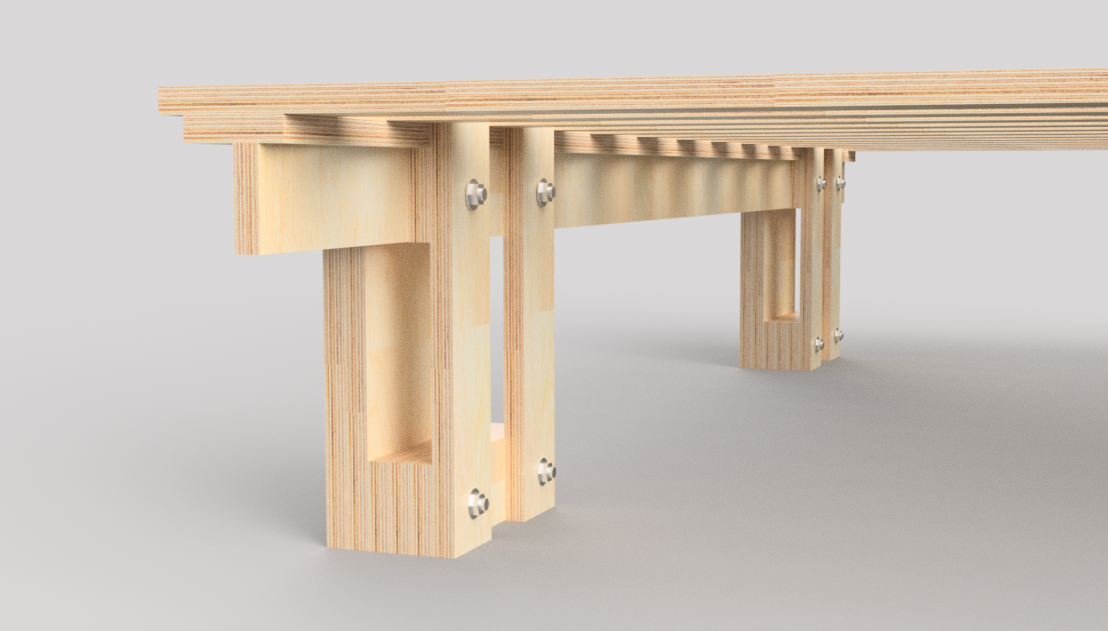

120mm M10 Bolts hold it all together.

Early sketches figuring out the idea for version 001.
