BELLY WUB SOUND SYSTEM
Built alongside Doug Hodgson.

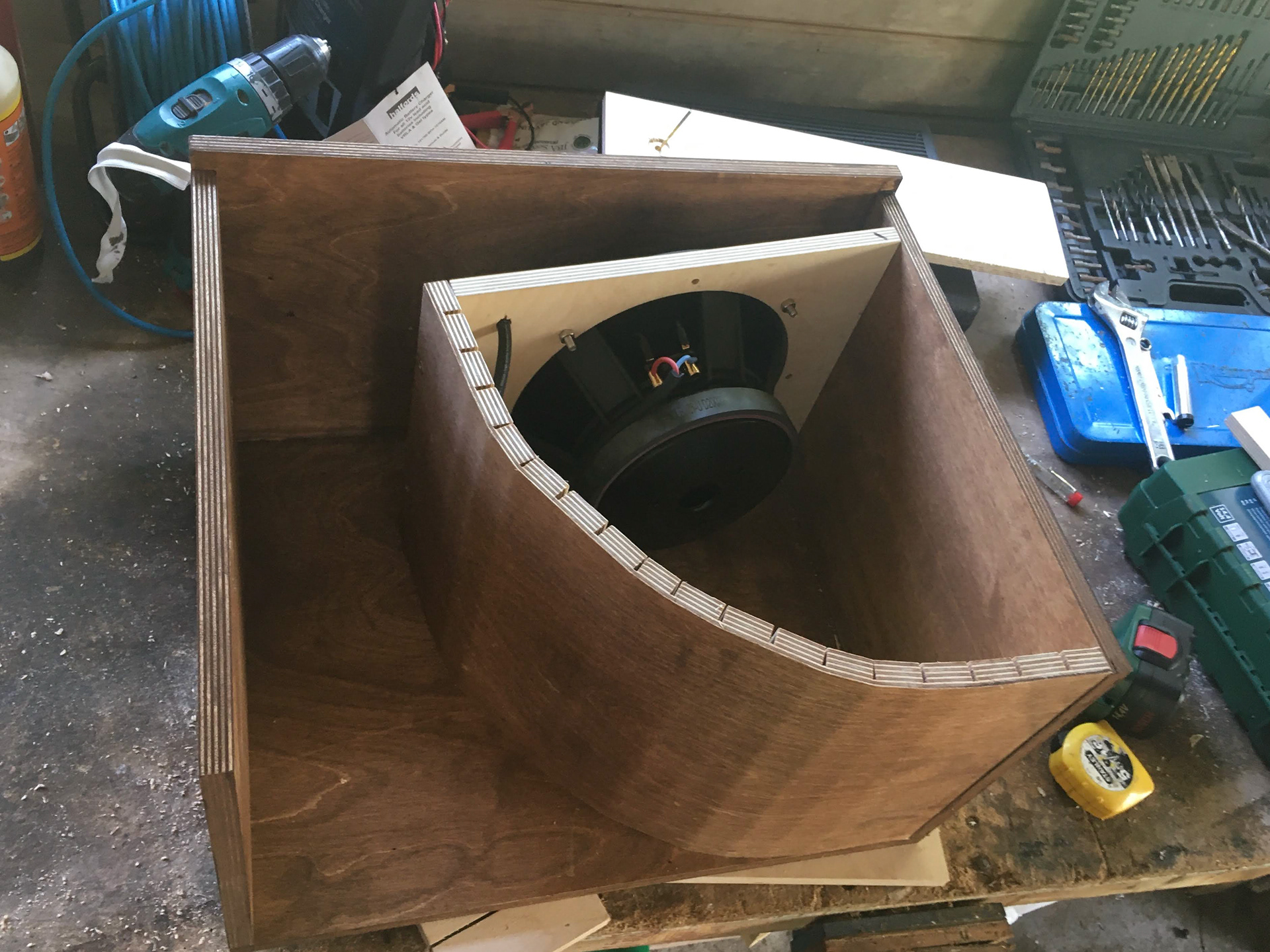

Half way through the top cabinet build.

Top Box is an MT HBR8. Utilising a Monacord MHD-240 horn and a Faital 8FE200, 8" full range driver.

Doug holding the finished 'Mule Kick' midrange box.

Internals of the 'THAM15' Sub.

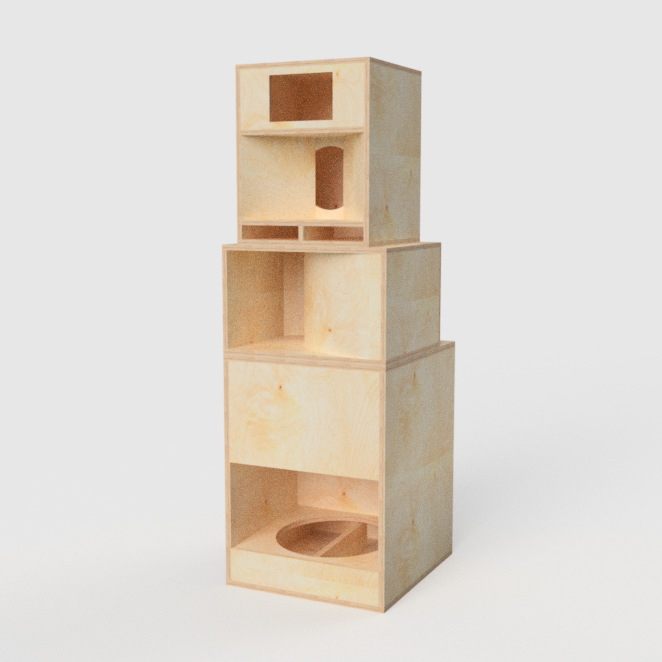

Render of the boxes that I recreated in CAD

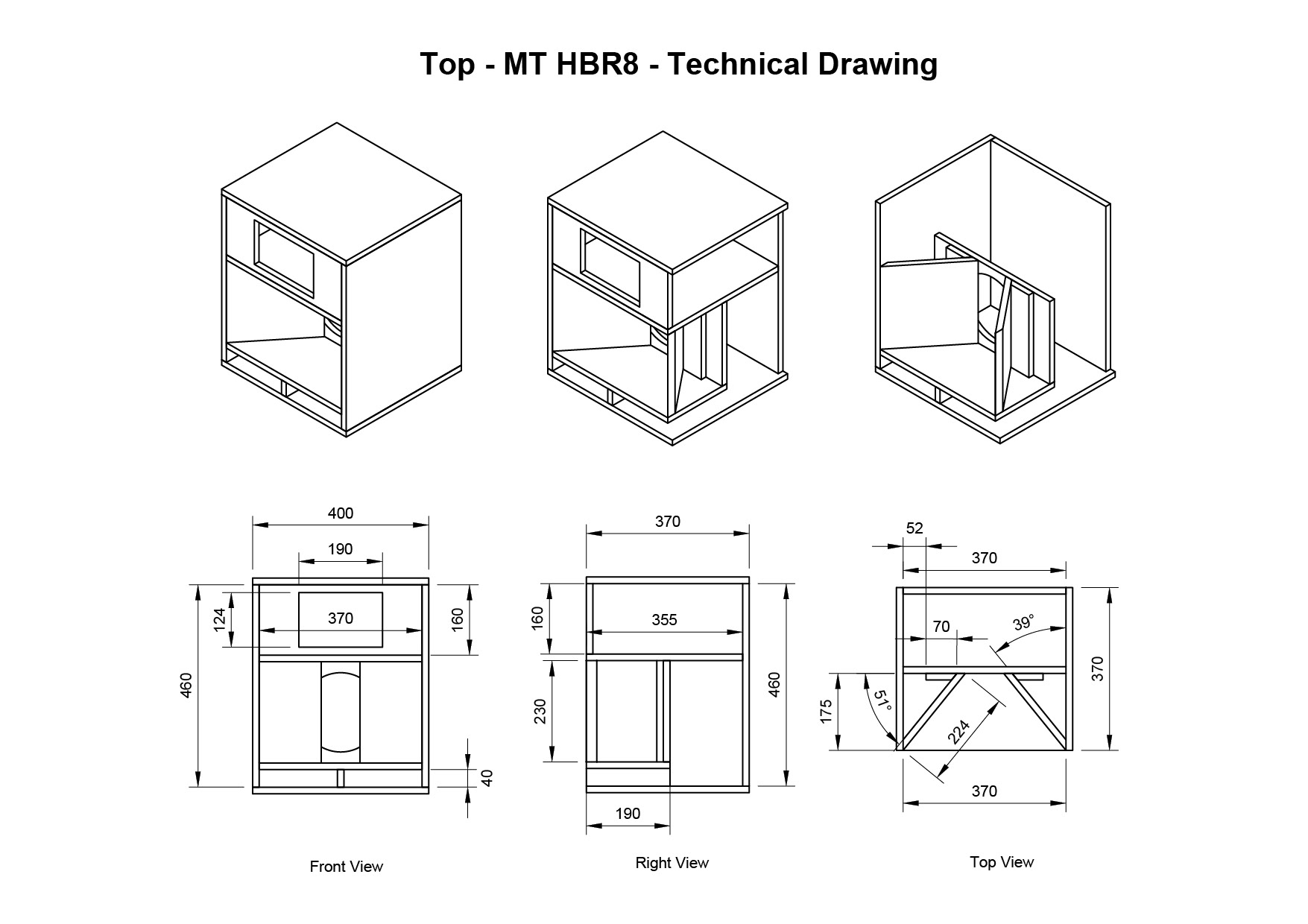

More detailed technical drawing I redrew to make it easier to follow.
